| Place of Origin: | CHINA |
| Brand Name: | QingCheng AE |
| Certification: | CE |
| Model Number: | PAS |

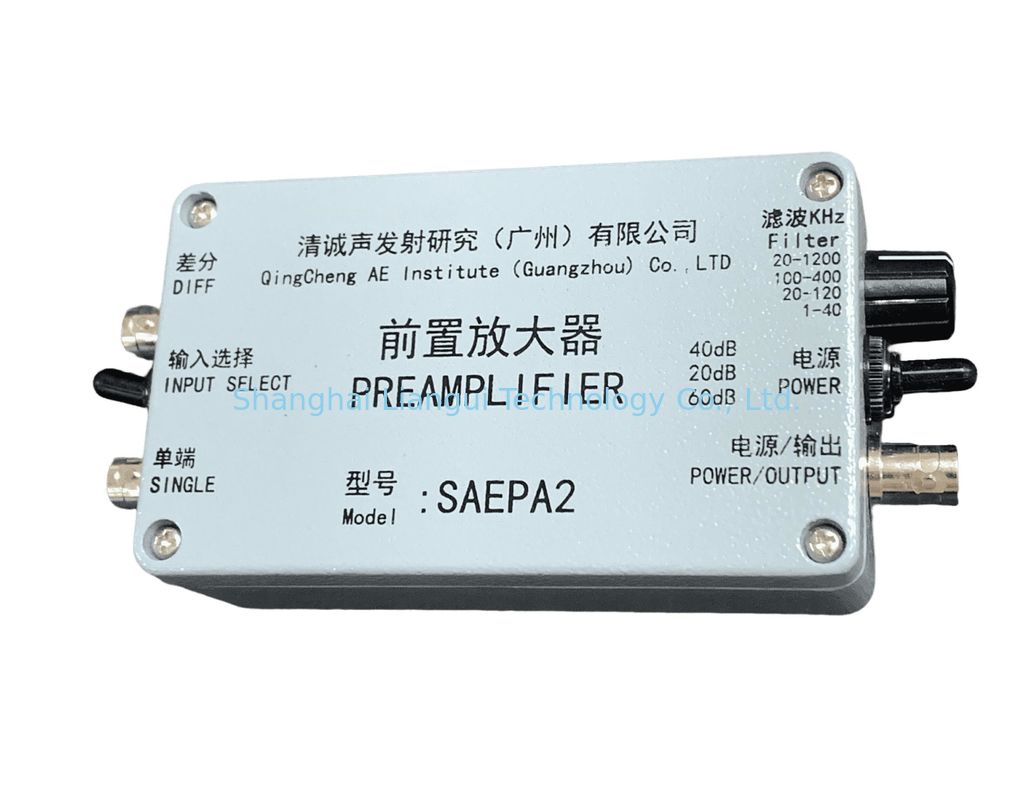

PAS preamplifier has the functions of 4 filters and 3 gains, and can be connected to differential sensors.
It is available in both phantom and adapter power supply, and it is compatible with most common sensors
and acoustic emission acquisition boards on the market.
|
||||||||||||||||||||||||||||||||||
1. The power supply should be a good match with the output impedance, otherwise it will lead to the
gain of the preamplifier to deviate from the nominal gain value, resulting in signal amplitude deviation.
2. If AE board from other manufacturers are selected, a PPS preamplifier power supply is required.
3. Wiring must be correct. The following three wrong operations may lead to damage to the preamplifier:
a. The input voltage is 25% higher than the power supply requirement.
b. Connect the power supply to the signal input connector.
c. The positive and negative terminals of the powersupply are inversely connected
Company Information:
Shanghai Liangui Technology Co., Ltd. is committed to promoting the prosperity and development of the world through technology, focusing on Intelligent Equipment & Automation Solutions to to help enterprises to improve production process and minimize the cost.
We are an intelligent equipment & automation solution integration service provider. Our company has a professional foreign trade sales team and an experienced technical support team, the principles of our team work is customer first and fast solution. Our business scope includes NDT Testing Equipment, Acoustic Emission Testing Instruments, Industrial Robot, Mechanical and Electrical Equipment etc.
Our NDT testing division is specialized in the R & D, production, sales and technical application services of Acoustic Emission Testing Instruments, Ultrasonic Flaw Detector, Ultrasonic Thickness Gauge and other Testing Instruments. Our R&D team has the ability to develop Sensors, Electronic Measurement Software and Hardware, we can also customize Non-standard Automated and Robotic Inspection Equipment for customers. Our products mainly used in Industrial Field (Aerospace, Railway, Automotive, Oil & Gas, Manufacturing, Process Industry ) and Power Generation (Renewable, Nuclear, New Reactors, Advanced Reactors, Research Reactors, Gas Combined, Coal, Cogeneration).
Our objective is to always help our clients meet their high safety standards, proposing efficient inspection solutions based on global services which reduce costs and increase process efficiency, make industrial facilities and power generation to operate safely, efficiently and excellently. Our major products AE system and instruments have been sold to China, USA, UK, Brazil, Indonesia and so on, which win the trust and support of customers from all over the world with an excellent reputation.
Performance characteristics:
Response frequency: 1.3kHz～1.2MHz
Noise: <24dB (40dB gain input terminal is shorted)
Built-in filter: 20kHz-1200kHz, (20kHz-630kHz at 60dB gain)
100kHz-400kHz
20kHz-120kHz
4 ranges from 1kHz-40kHz
Output range: ±10V (Vpp)
Input capacitive reactance: 15pF
Working voltage: 28V DC (24V-32V)
Rated load: 50Ω
Quiescent current: 35 mA
Maximum output current: 40 mA
Working temperature: -20℃～﹢60℃
Size: 110mm×65mm×37mm
Protection level: IP65
Shell material: cast aluminum
Interface type: 2 BNC (Q9) interfaces, differential BNC interface, power interface
