| Place of Origin: | CHINA |
| Brand Name: | QingChneg AE |
| Certification: | CE |
| Model Number: | GI150 Integral Preamplifier Sensor |

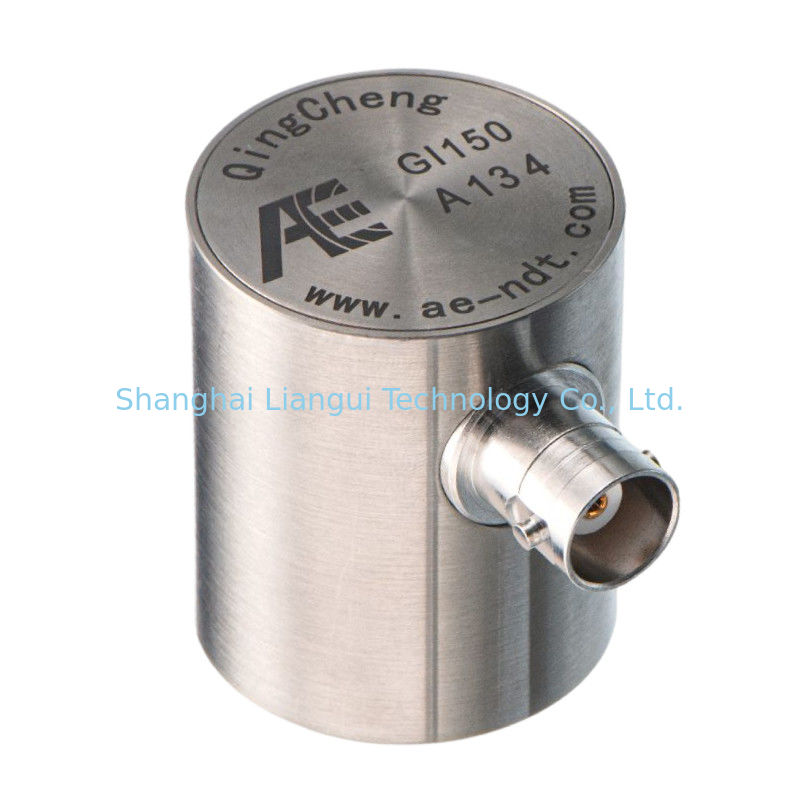

GI150 is a piezoelectric acoustic emission sensor with integrated preamplifier, it does not need to be connected
to the additional preamplifier, thus simplifying the wiring work. And this sensor is well suited for crack and fault diagnosis
of metallic equipment, and for structures health monitoring such as pipelines, pressure vessels, bridges etc. Moreover,
GI150 is compatible with the AE detector from other manufacturer.
| Technical Specs | |
| Resonant Freq. Ref V/(m/s) | 150kHz |
| Frequency Range | 60kHz-400kHz |
| Sensitivity Peak Ref V/(m/s) | >75dB |
| Integral preamplifier | 40dB28V |
| Preamp. Impedance | 50Ω |
| Working Temp. | -20 to 50℃ |
| Size(DxH) | 30×36.5mm |
| Weight | 120 g |
| Case Material | SUS-304 |
| Face Material | Ceramic |
| Protecting Grade | IP62 |
| Connector | BNC |
| Connector Location | Side |
| Accessories | |
| Signal cable model | RG178/RG316 |
| Hold-down | M36 |
Shanghai Liangui Technology Co., Ltd. is committed to promoting the prosperity and development of the world through technology, focusing on Intelligent Equipment & Automation Solutions to to help enterprises to improve production process and minimize the cost.
We are an intelligent equipment & automation solution integration service provider. Our company has a professional foreign trade sales team and an experienced technical support team, the principles of our team work is customer first and fast solution. Our business scope includes NDT Testing Equipment, Acoustic Emission Testing Instruments, Industrial Robot, Mechanical and Electrical Equipment etc.
Our NDT testing division is specialized in the R & D, production, sales and technical application services of Acoustic Emission Testing Instruments, Ultrasonic Flaw Detector, Ultrasonic Thickness Gauge and other Testing Instruments. Our R&D team has the ability to develop Sensors, Electronic Measurement Software and Hardware, we can also customize Non-standard Automated and Robotic Inspection Equipment for customers. Our products mainly used in Industrial Field (Aerospace, Railway, Automotive, Oil & Gas, Manufacturing, Process Industry ) and Power Generation (Renewable, Nuclear, New Reactors, Advanced Reactors, Research Reactors, Gas Combined, Coal, Cogeneration).
Our objective is to always help our clients meet their high safety standards, proposing efficient inspection solutions based on global services which reduce costs and increase process efficiency, make industrial facilities and power generation to operate safely, efficiently and excellently. Our major products AE system and instruments have been sold to China, USA, UK, Brazil, Indonesia and so on, which win the trust and support of customers from all over the world with an excellent reputation.
1.What is the price term?
FOB Guangzhou.
2.What’s the warranty time?
12 months after shipment date
3.What’s the delivery date?
10-30 days after receiving the T/T payment.
4.How to deal with the faulty part if exceeds the warranty time?
Customer can return the faulty parts for our testing and maintaining, all the logistic fee should be at customer’s cost.
If you have any other questions please feel free to contact us.
