| Place of Origin: | China |
| Brand Name: | QingCheng Ltd. |
| Certification: | CE |
| Model Number: | GSI150 |
| Technical Specs | |
| Resonant Freq. Ref V/(m/s) | 150kHz |
| Frequency Range | 60kHz-400kHz |
| Sensitivity Peak Ref V/(m/s) | >73dB |
| Integral preamplifier | 26dB5V |
| Preamp. Impedance | 50Ω |
| Working Temp. |
Sensor:-20 to 170℃ Preamp:-20 to 60℃ |
| Size(DxH) |
Sensor:21.7x25 mm Preamp:19×14 mm |
| Weight | 26 g |
| Case Material | SUS-304 |
| Face Material | Ceramic |
| Protecting Grade | IP68 |
| Connector | SMA |
| Connector Location | Top on preamplifier |
| Accessories | |
| Signal cable model | RG178/RG316 |

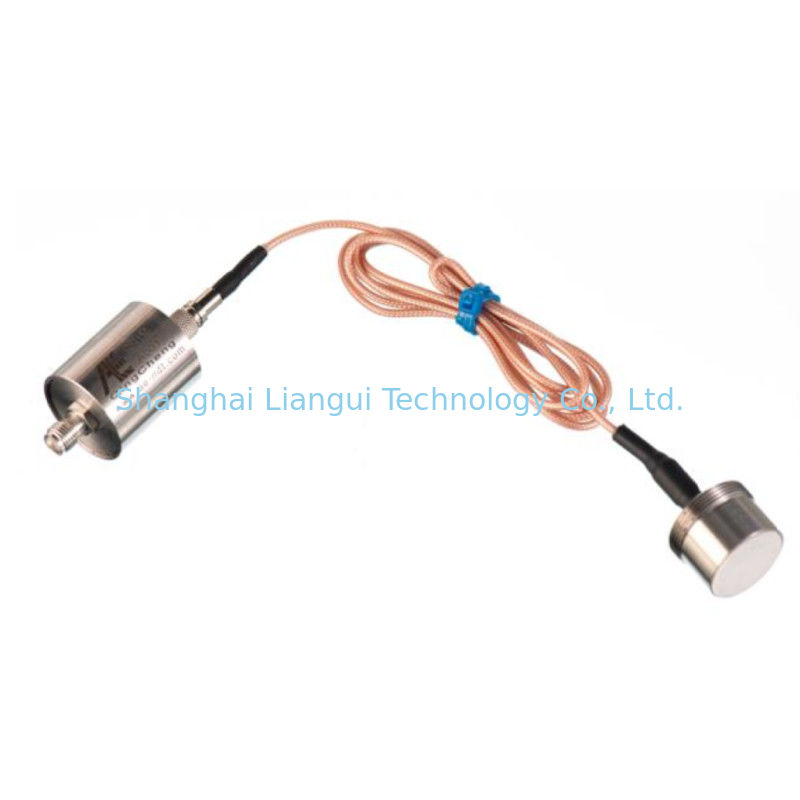

The GSI150 is well suited for detecting equipment in harsh environment that requires intrinsic safety. It is useful for detecting the crack and fault of metallic equipment and monitoring structures such as pipelines, vessels, bridges etc.
1.What is the price term?
FOB Guangzhou.
2.What’s the warranty time?
12 months after shipment date
3.What’s the delivery date?
30-45 days after receiving the T/T payment.
4.How to deal with the faulty part if exceeds the warranty time?
Customer can return the faulty parts for our testing and maintaining, all the logistic cost and maintaining fee should be at customer’s cost.
